Igland 3501
Product Information
Addition Images
Strong and reliable forest winch, designed for medium tasks. Suitable for smaller tractors. Adjustable pulling point to give better lifting abilities of the timber during winching. The winch is operated with a cord from the tractor seat or at a safe distance to the side. Specially designed hinged logging -plate, which works as a “carrier” of the timber and results in a smoother drive over stumps and rocks. Long coil distance between top block and the drum results in good distribution of wire rope on the drum.
Technical Information
| Max pulling capacity - empty drum | 3.5 ton |
| Max pulling capacity - full drum | 1.1 ton |
| Drums | 1 |
| Wire rope(theoretical capacity) | 233' |
| Recommended wire rope length | 164' |
| Pulling speed at 540 rpm | 2 to 5.5 ft/sec |
| Necessary power input | 22 kW |
| Ratio | 1:5.18 |
| Braking power | Min. 3.75 ton |
| Controls | Standard cord operation |
| Clutch | Replaceable Friction pads |
| Brake | Ratchet brake |
| Mounting | 3-point hitch |
| PTO input | 13.8" |
| Height/Width/Depth | 45"/39.4"/14.6" |
| Weight(w/o wire rope) | 441 lbs |
| For small tractors from 35-70HP |
| Adjustable height of pulling point |

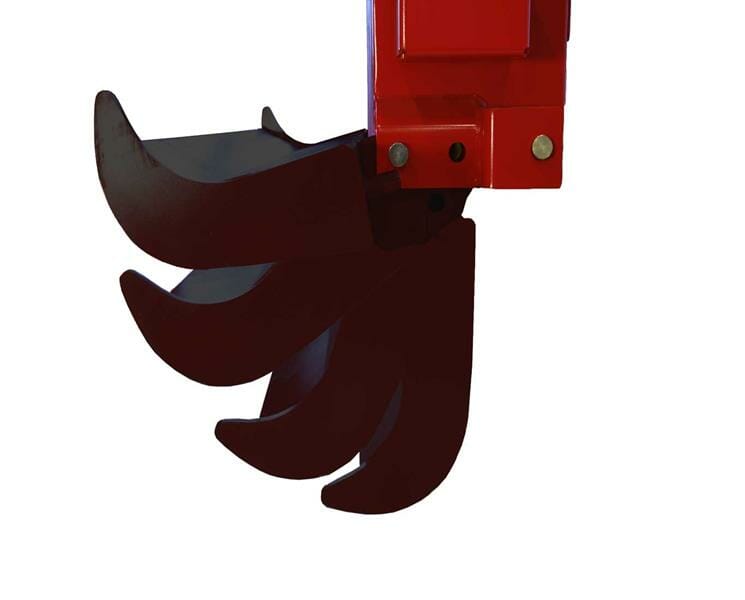

| Hinged butt plate 4' wide for smoother drive over stumps & stones |
| Cable gaurd prevents derailment |
| Toolbox |
| Radio controlled |
