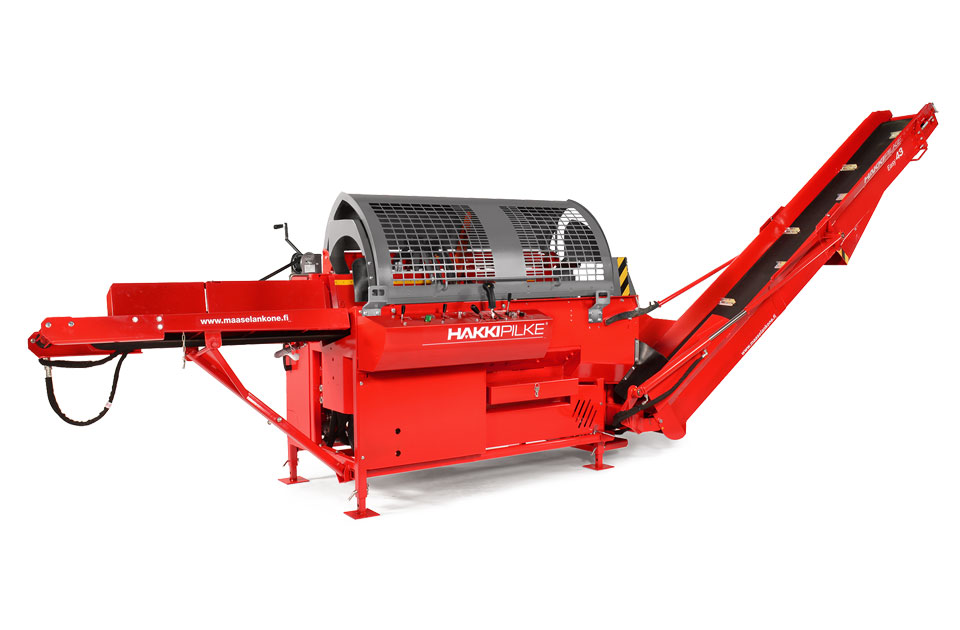

The Hakki Pilke 43 Pro firewood processor is a combination of experience and innovations. 43 Pro is an entirely new machine based on the Easy 42 model, highly regarded among professional users.

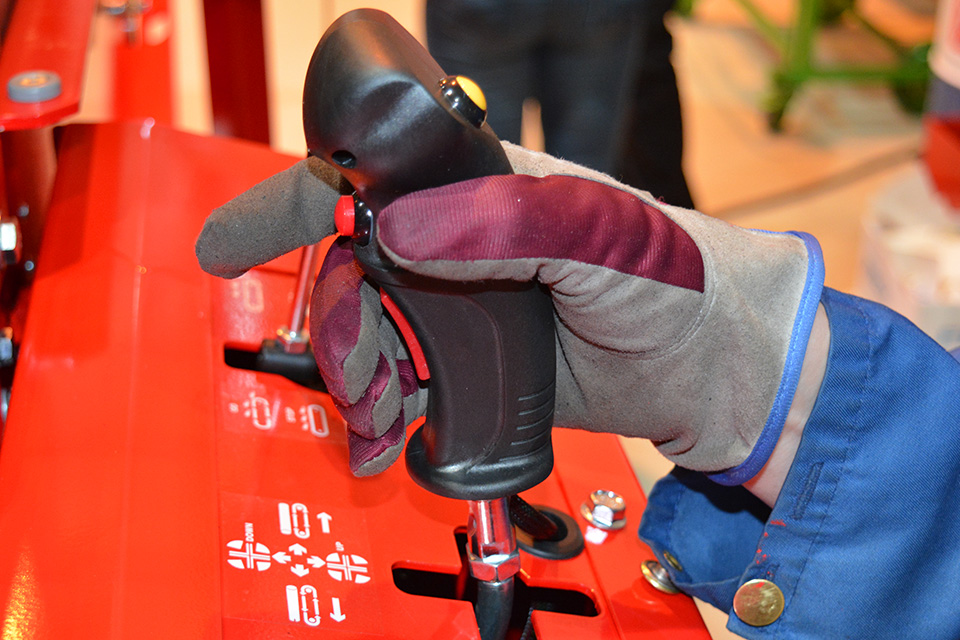

In terms of the operator, the most significant update is the user interface that provides a fully revamped user experience. HakkiCutTM sawing takes place with the press of a button and always automatically applies the optimal force. Patented hydraulic AC10 chain tensioner and automatic chain lubrication pump ensures that the saw chain and bar last for a long time and provide unparalleled cutting efficiency time and time again. User can set the feed assist mechanism to feed in logs during every splitting motion, ensuring that a new splitting action can always be activated optimally when the pusher’s return motion begins.
Technical Information
| Max log diamter | 17" |
| Max wood length | 23.6" |
| Max splitting force | 15 ton |
| Saw Chain | .404 1.6mm 68 |
| Bar | 18" |
| Power source | PTO, Electric motor, or combinaton |
| Electric motor | 15 kW |
| Splitting blade | 6 way |
| Outfeed conveyor length | 13.1' |
| Infeed conveyor length | 8.2' |
| Hydraulic infeed roller |
| Infeed guide plate |
| Log feed assist mechanism |
| Hydraulic log press |
| AC 10(hydraulic chain tensioner) |
| HakkiCutTM cutting control |
| Automatically optimized saw press mechanism |
| Automatic chain oil lubrication |
| HakkiSplitTM delay free splitting |
| Hydraulically retracted log measuring device |
| Guide plates for falling wood pieces |
| Log guide plates for controlled landing |
| Hydraulic swivel outfeed conveyor |
| Outfeed conveyor speed control(+reverse) |
| Cleaning outfeed conveyor |
| Oil cooler |
| Toolbox |
| Active cover |
| Outfeed conveyor extension |
| Blower saw-dust removal |
| Heater for oil |
| Splitting blade 2/4, 8, 12 way |
